laparoscopy light source

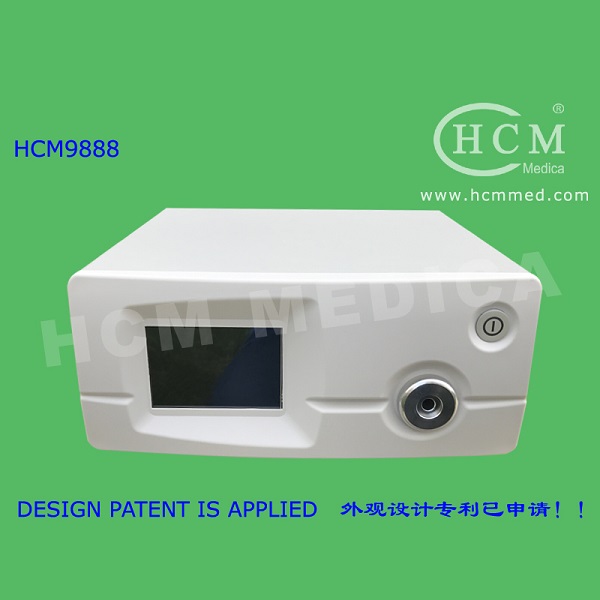

HCM9888: laparoscopy light source with touch screen

HCM MEDICA is professional in high power endoscope camera light source, product is widely used in all kinds of endoscope and microscope applications, especially laparoscopy.

OUR ADVANTAGES:

1. Led bulb: our led bulb is imported from LUMINUS USA, not the ones made in mainland China or Taiwan China (the latter led bulb price is around 20% of LUMINUS bulb), which assures you the best light for your camera from the original source.

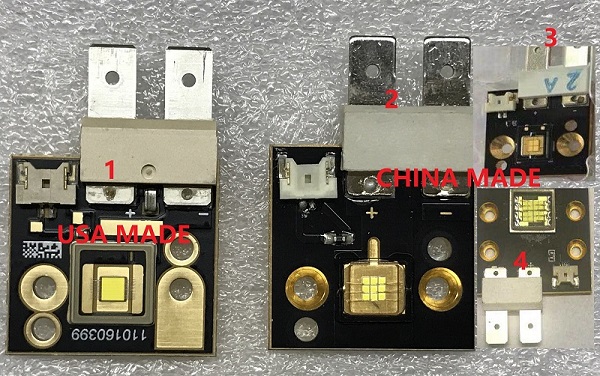

HOW TO IDENTIFY THE BULB TYPE?

In fact it is very simple, find the light output connector, look inside and you will see the bulb structure, there is only 1 chip for LUMINUS bulb, and there are 4, 12, 16, etc chips for China made bulb depends on different factories.

2. Quality guarantee: many factories use very low quality accessories, yet their product price is even high then our product, their product is ok for 6 to 12 months, and all kinds problems will come after that.

More than 95% of our accessories are imported from USA and Japan, we never use low quality accessories on our product, and we control final manufacturing cost with the help of massive purchase only.

We provide 2 years use guarantee for our whole light source, it is only official guarantee time, in fact, you could use it more than 6 to 8 years without any problem.

3. OEM service: we have provide OEM service for many companies worldwide, it includes both whole shape and inner technical designs, just let us know your idea, and we will work out the very product you need.

BASIC PARAMETERS:

1. Led power: 120W.

2. Input power: Wide range from 100-240V/AC; 50/60 Hz, so you use it in any country on this small planet.

3. Intensity: it is 40% higher than traditional 350W xenon light source, more than 2 times of the same power led light source on the market.

4. Color temperature: 5600K, CRI 70 and 90.

5. Led life: it could last 60000 hours max, 120times of xenon, so you do not need to replace the bulb for years.

Note: the above life hour is based on ideal lab test.

6. Connector: Customized connector, it accepts fiber light guides with active areas ranging from 3 mm to 10 mm diameter.

7. Does not emit light in UV or IR.

8. It saves energy for more than 50%.

9. Environmentally friendly.

10. Friendly design, easy operation
