Name: Combo endoscope camera
Model: HCM8269
| PRODUCT DESCRIPTION

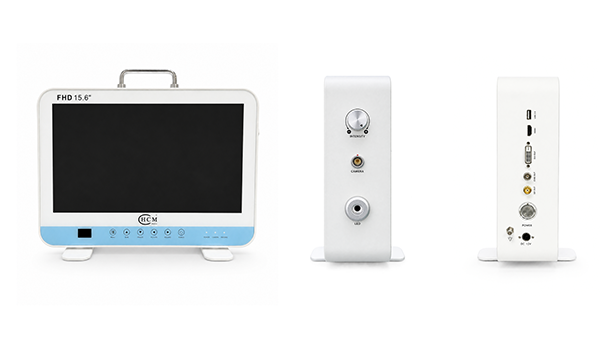

HCM8269: combo endoscope camera
FHD camera + 15.6 inches display( LG medical grade) + light source (USA light system)
DEMONSTRATION VIDEO
https://youtu.be/tnjoWserVC0?si=Hx9sM7FkcTW9VB3D

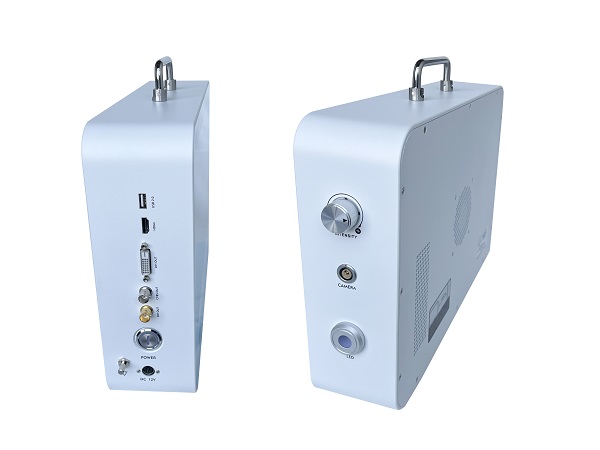

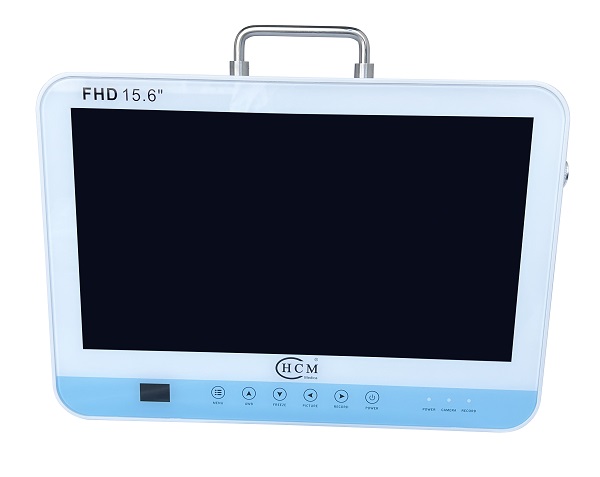

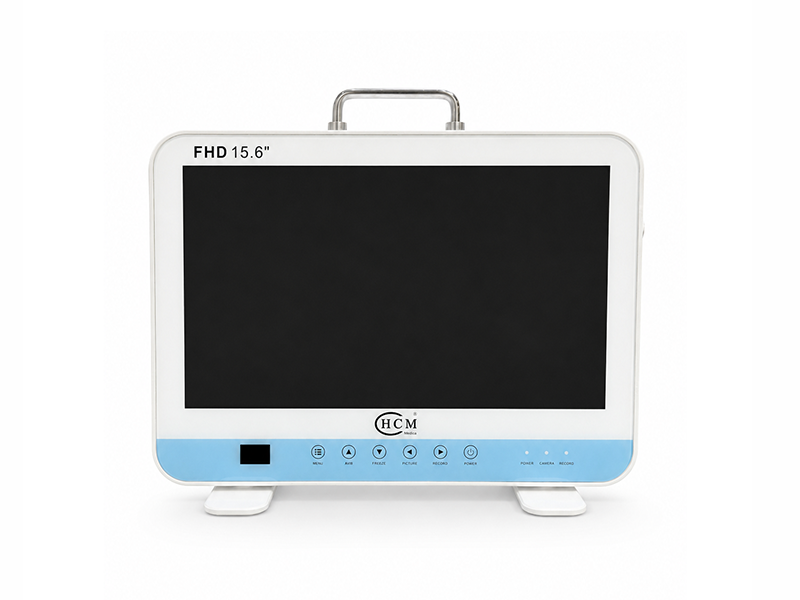

This 15.6 inches combo FHD medical endoscope camera is 1080P grade, intergrated with LG medical grade display and USA led light system, which is very compact with all the necessary functions, photo and video recording, one click operation for white balance and picture freeze.. It is widely used in all kinds of endoscopy applications, such as ENT, laparoscope, cystoscope, arthroscope, hysteroscope, etc.
Basic Parameters:
MODEL | HCM8269 |
BRAND | HCM MEDICA |
CAMERA | |
SENSOR | 1/1.8 CMOS |
RESOLUTIONS | 1920(H)*1080(V) 60 FPS |
SCAN MODE | PROGRESSIVE SCAN |
HORIZONTAL RESOLUTION | 1100TVL(1080P) |
FOCUSING RANGE | ≥(2-200)MM |
SNR | ≥40 DB |
BRIGHTNESS | ADJUSTABLE |
WHITE BALANCE | MANUAL / AUTO |
MINIMUM INTENSITY | F1.2≤ 0.1 LUX |
DNR | 2D NOISE REDUCTION |
VIDEO OUTPUT | SDI*1, CVBS*1, DVI*1, HDMI*1, USB*1 |
PHOTO / VIDEO RECORD | SUPPORTED |
RECORDING FORMAX | MP4 |
RECORODING RESOLUTION | 18MBS 1080P 60FPS |
U FLASH DISK | MAX 1TB |
HDD | MAX 2TB |
POWER | AC110-240V |
COUPLER (OPTIONAL) | F18/20/22/24/28/32/25, OR ZOOM 32-35 |
DISPLAY | |
BRAND | LG |
STANDARD | MEDICAL GRADE |
SIZE | 15.6 inches |
Resolution | 1920*1080P |
LED LIGHT SOURCE | |
LED BULB | LUMINUS USA |
WATTAGE | 120W |
COLOR TEMPERATURE | 5600 - 6500K |
HCM8262:
Certificate:
FAQs:
1.Who are we?
HCM MEDICA is professional in high power endoscope camera light source, product is widely used in all kinds of endoscope and microscope applications, especially laparoscopy.
2. What is our core product range?
We focus on light and image only：medical endoscope camera, coupler, monitor, fiber optic cable, endoscope led light source, microscope led light source, led headlight, cable headlight, etc.
3.Can we provide customized (OEM/ODM) services?
Yes. As a manufacturer, we have provided OEM service for many companies worldwide, it includes both whole shape and inner technical designs, just let us know your idea, and we will work out the very product you need.
4. Why the HCM8269?
The HCM8269 by HCM MEDICA is an all-in-one 15.6-inch full HD medical endoscope camera system designed for procedures like ENT, laparoscopy, and arthroscopy.
It integrates a 1080P 60fps CMOS camera, an LG medical-grade display, and a 120W Luminus USA LED light source into an anti-interference, portable unit. Key highlights include one-click white balance, image freeze, full HD recording (MP4), an IP8X waterproof camera head, and multiple video outputs (HDMI, SDI, DVI). Delivering vivid visualization even in bloody surgical fields, it offers a versatile, reliable clinical solution.

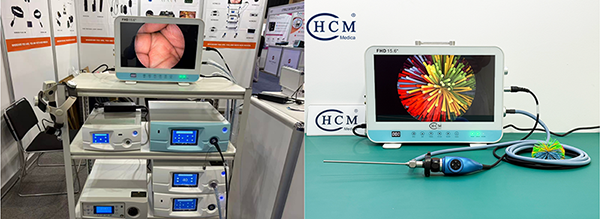

Use Cases：
Our Recommend：
HCM MEDICA ® is a leading manufacturer of medical endoscope camera system, we focus on light and image only：medical endoscope camera, coupler, monitor, fiber optic cable, endoscope led light source, microscope led light source, led headlight, cable headlight, etc.
