Name: Combo Endoscope Camera
Model: HCM8264
| PRODUCT DESCRIPTION

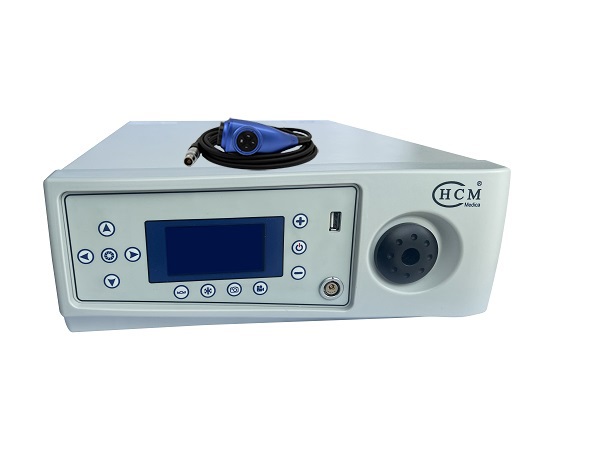

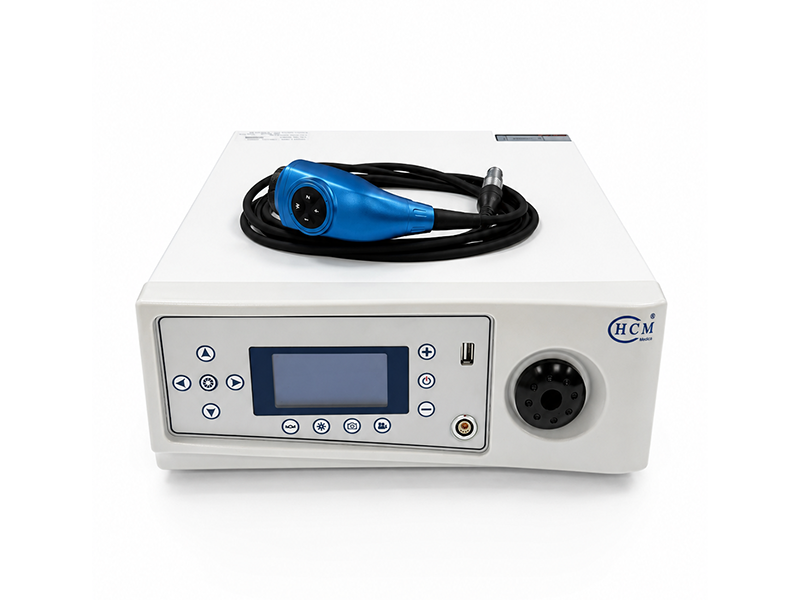

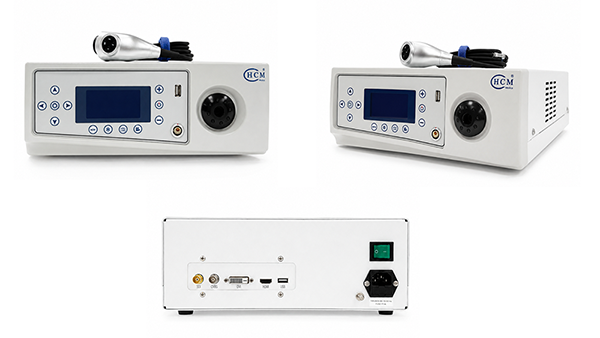

HCM8264: combo endoscope camera
FHD camera + 120W led light source (USA light system)
This combo FHD medical endoscope camera is a combination of 120W led light source and FHD 1080P camera, with photo and video recording function, one click operation for white balance and picture freeze. It is widely used in all kinds of endoscopy applications, such as ENT, laparoscope, cystoscope, arthroscope, hysteroscope, etc.
Basic Parameters:
MODEL | HCM8264 |
BRAND | HCM MEDICA |
CAMERA | |
SENSOR | 1/1.8 CMOS |
RESOLUTIONS | 1920(H)*1080(V) 60 FPS |
SCAN MODE | PROGRESSIVE SCAN |
HORIZONTAL RESOLUTION | 1100TVL(1080P) |
FOCUSING RANGE | ¡İ(2-200)MM |
SNR | ¡İ40 DB |
BRIGHTNESS | ADJUSTABLE |
WHITE BALANCE | MANUAL / AUTO |
MINIMUM INTENSITY | F1.2¡Ü 0.1 LUX |
DNR | 2D NOISE REDUCTION |
VIDEO OUTPUT | SDI*1, CVBS*1, DVI*1, HDMI*1, USB*1 |
PHOTO / VIDEO RECORD | SUPPORTED |
RECORDING FORMAX | MP4 |
RECORODING RESOLUTION | 18MBS 1080P 60FPS |
U FLASH DISK | MAX 1TB |
HDD | MAX 2TB |
POWER | AC110-240V |
COUPLER (OPTIONAL) | F18/20/22/24/28/32/25, OR ZOOM 32-35 |
LED LIGHT SOURCE | |
LED BULB | LUMINUS USA |
WATTAGE | 120W |
COLOR TEMPERATURE | 5600 - 6500K |
HCM8262:
Certificate:
FAQs:
1.Who are we?
HCM MEDICA is professional in high power endoscope camera light source, product is widely used in all kinds of endoscope and microscope applications, especially laparoscopy.
2. What is our core product range?
We focus on light and image only£ºmedical endoscope camera, coupler, monitor, fiber optic cable, endoscope led light source, microscope led light source, led headlight, cable headlight, etc.
3.Can we provide customized (OEM/ODM) services?
Yes. As a manufacturer, we have provided OEM service for many companies worldwide, it includes both whole shape and inner technical designs, just let us know your idea, and we will work out the very product you need.
4. Why the HCM8264?
A versatile, space-saving all-in-one endoscopy system combining crystal-clear 1080P 60fps imaging with a high-power 120W Luminus LED light source and built-in HD recording for seamless multi-specialty surgical procedures.

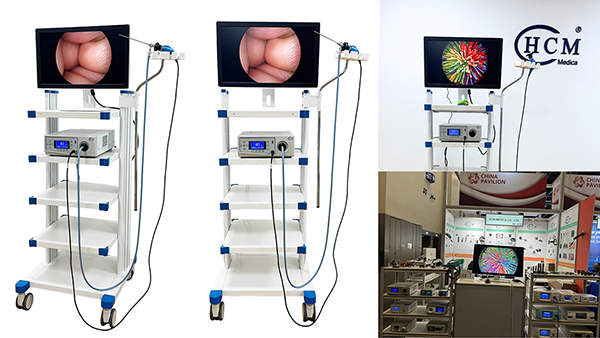

Use Cases£º
Our Recommend£º
HCM MEDICA ® is a leading manufacturer of medical endoscope camera system, we focus on light and image only£ºmedical endoscope camera, coupler, monitor, fiber optic cable, endoscope led light source, microscope led light source, led headlight, cable headlight, etc.
