Name: ent laparoscope camera
Model: HCM8261
| PRODUCT DESCRIPTION
This FHD medical endoscope camera HCM8261 is 1080P grade, widely used in all kinds of endoscopy applications, such as ENT, laparoscope, cystoscope, arthroscope, hysteroscope, etc, with photo and video record function, one click operation for white balance and picture freeze.
Basic Parameters:
MODEL | HCM8261-1: with touch screen HCM8261-2: with press button |
BRAND | HCM MEDICA |
SENSOR | 1/1.8 CMOS |
RESOLUTIONS | 1920(H)*1080(V) 60 FPS |
SCAN MODE | PROGRESSIVE SCAN |
HORIZONTAL RESOLUTION | 1100TVL(1080P) |
FOCUSING RANGE | ≥(2-200)MM |
SNR | ≥40 DB |
BRIGHTNESS | ADJUSTABLE |
WHITE BALANCE | MANUAL / AUTO |
MINIMUM INTENSITY | F1.2≤ 0.1 LUX |
DNR | 2D NOISE REDUCTION |
VIDEO OUTPUT | SDI*1, CVBS*1, DVI*1, HDMI*1, USB*2 |
PHOTO / VIDEO RECORD | SUPPORTED |
RECORDING FORMAX | MP4 |
RECORODING RESOLUTION | 18MBS 1080P 60FPS |
U FLASH DISK | MAX 1TB |
HDD | MAX 2TB |
POWER | AC110-240V |
COUPLER (OPTIONAL) | F18/20/22/24/28/32/25, OR ZOOM 32-35 |

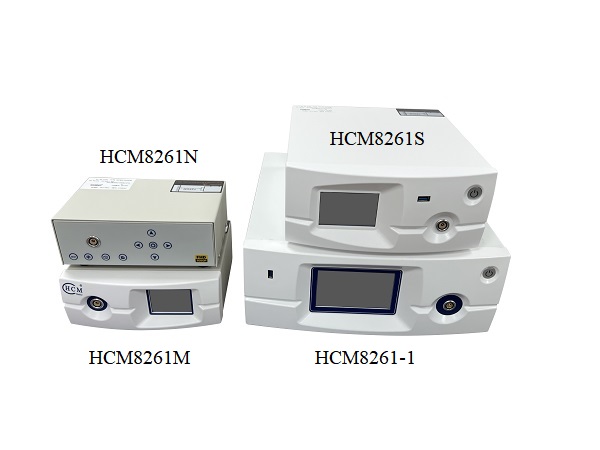

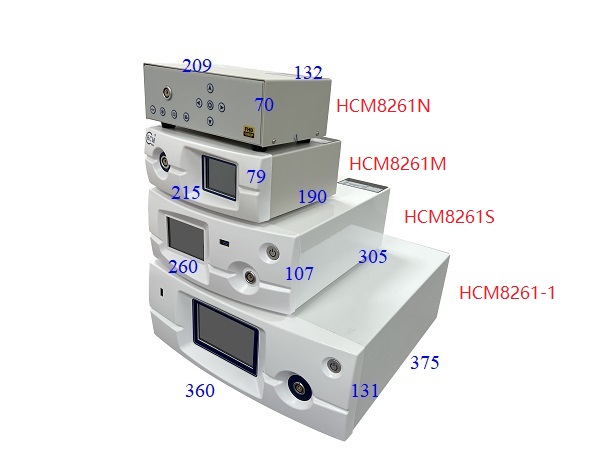

HCM8261 Series Comparison:

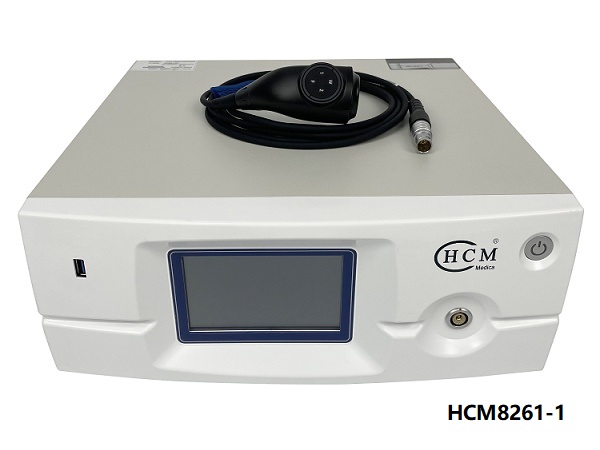

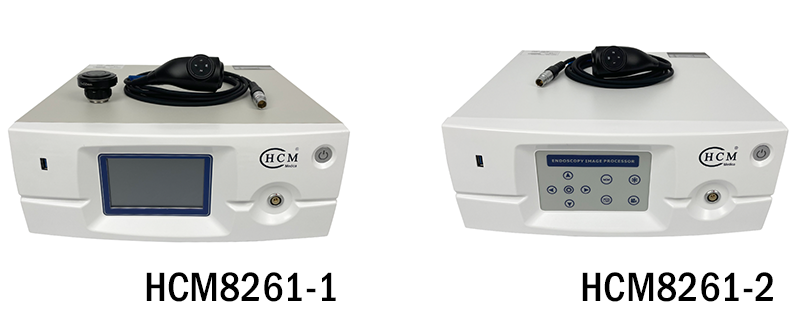

HCM8261-1: with touch screen
HCM8261-2: with press button
HCM8261 is a bigger version of HCM8261S
HCM8261: big size
https://www.hcmmed.com/productShow.php?id=47
HCM8261S: smaller size
https://www.hcmmed.com/productShow.php?id=57
HCM8261M: mini size with touch screen
https://www.hcmmed.com/productShow.php?id=60
HCM8261N: mini size without touch screen
https://www.hcmmed.com/productShow.php?id=58

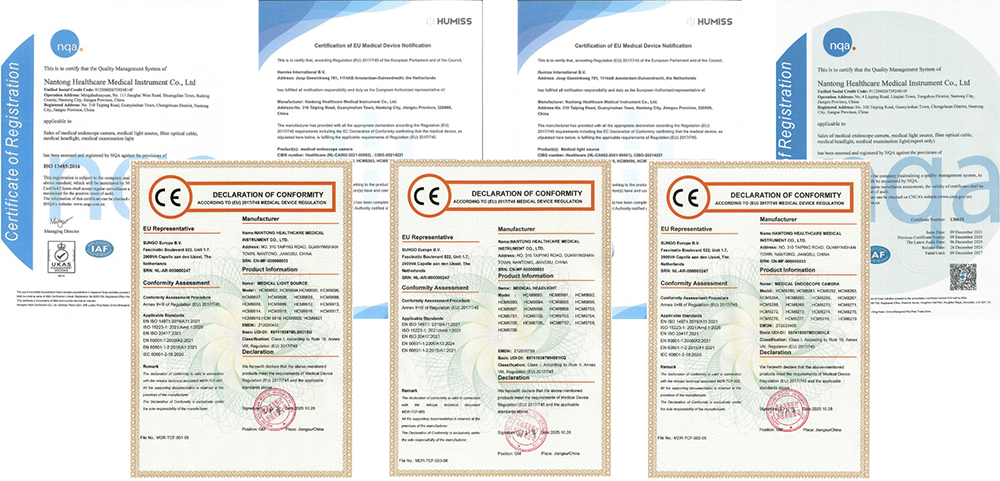

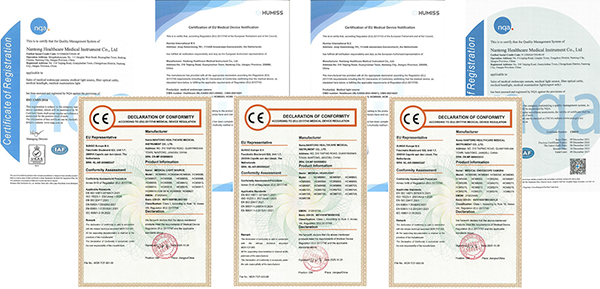

Certificate:
FAQs:
1.Who are we?
HCM MEDICA is professional in high power endoscope camera light source, product is widely used in all kinds of endoscope and microscope applications, especially laparoscopy.
2. What is our core product range?
We focus on light and image only：medical endoscope camera, coupler, monitor, fiber optic cable, endoscope led light source, microscope led light source, led headlight, cable headlight, etc.
3.Can we provide customized (OEM/ODM) services?
Yes. As a manufacturer, we have provided OEM service for many companies worldwide, it includes both whole shape and inner technical designs, just let us know your idea, and we will work out the very product you need.
4. Why the HCM8261?
HCM8261 Full HD endoscope camera delivers crisp 1080p 60fps imaging across diverse surgical applications, backed by strong anti-electromagnetic interference, IPX8 waterproof durability, and convenient one-click operation with built-in recording.

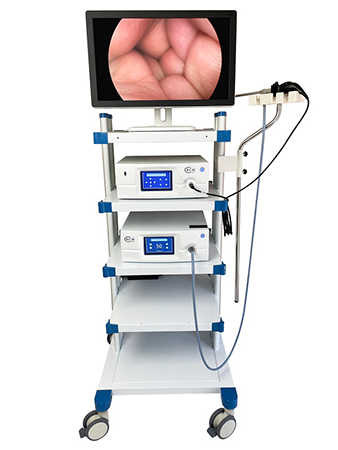

Use Cases：
Our Recommend：
◆ Imported CMOS, which bring you perfect image and video effect with 1920*1080P 60fps resolution.
◆ Widely used in all endoscopy applications, ENT, laparoscope, cystoscope, arthroscope, hysteroscope, etc.
◆ Quick operation for white balance and image freeze with one click only.
◆ Function is adjustable for camera head and processor unit buttons.
◆ Free from electromagnetic interference, such as ultrasonic knife, plasma knife, electrosurgical unit, etc.
◆ Camera head is water proof ip8x grade, low temperature plasma and soaking disinfection is recommend.
◆ Fast light extinction with less than 0.2s, which makes operations smoother.
HCM MEDICA ® is a leading manufacturer of medical endoscope camera system, we focus on light and image only：medical endoscope camera, coupler, monitor, fiber optic cable, endoscope led light source, microscope led light source, led headlight, cable headlight, etc.
